All Plastics and Fiberglass, Inc. fabricated both Fiberglass Reinforce Plastics (FRP) hangers and Steels hangers to meet customer requirement. The size and diameters of the hanger can be custom made to the pipe diameter.
|
Maximum Load Capacity As Governed By Rod Size |
Pipe Size | Length | Rod Size | ||||||
| in. | mm. | in. | mm. | in. | mm. | ||||
| Rod Size | Capacity | 1/2" | 21.5 | 5 1/2" | 140 | 3/8" | 10 | ||
| in. | mm. | lbs. | kg. | 3/4" | 27 | 5 1/2" | 140 | 3/8" | 10 |
| 3/8 | 10 | 610 | 276 | 1" | 34 | 5 1/2" | 140 | 3/8" | 10 |
| 1/2 | 12 | 1130 | 512 | 1 1/2" | 49 | 5 1/2" | 140 | 3/8" | 10 |
| 5/8 | 16 | 1810 | 820 | 2" | 61 | 5" | 130 | 3/8" | 10 |
| 3/4 | 20 | 2710 | 1227 | 3" | 90 | 6 1/2" | 165 | 3/8" | 10 |
| 1 | 25.4 | 4960 | 2127 | 4" | 115 | 6 1/2" | 165 | 1/2" | 12 |
|

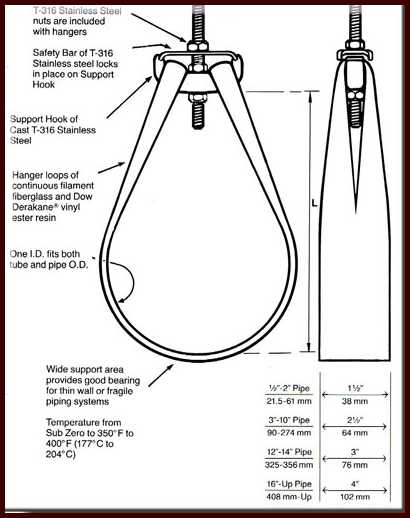

Click For Larger Picture |
6" | 169 | 10 1/2" | 270 | 1/2" | 12 | |||
| 8" | 220 | 11 1/2" | 295 | 1/2" | 12 | ||||
| 10" | 274 | 14" | 355 | 1/2" | 12 | ||||
| 12" | 325 | 17" | 430 | 5/8" | 16 | ||||
| 14" | 356 | 21" | 535 | 5/8" | 16 | ||||
| -6" | 408 | 24 1/2" | 625 | 5/8" | 16 | ||||
| -8" | 458 | 29" | 735 | 3/4" | 20 | ||||
| 20" | 510 | 32 3/4" | 830 | 1" | 25 | ||||
| 24 | 610 | 35" | 890 | 1" | 25 | ||||
| 30 | 760 | 44" | 1120 | 1" | 25 | ||||
| 36 | 914 | 53" | 1345 | 1" | 25 | ||||
| 42 | 1070 | 63" | 1600 | 1" | 25 | ||||
| 48 | 1220 | 72" | 1830 | 1" | 25 | ||||
| 60 | 1520 | 91" | 2310 | 1" | 25 | ||||
| 72 | 1830 | 111" | 2820 | 1" | 25 | ||||
