Grating

> CC-GRATE: 1" Thick (1.5 x 1.5" Square Mesh)
> CC-GRATE: 1.0" Thick (1" x 4" Heavy Duty- Rectangular Mesh)
> CC-GRATE: 1.5" Thick (1.5 x 1.5" Square Mesh)
> CC-GRATE: 1.5" Thick (1.5" x 6" Rectangular Mesh)
> CC-GRATE: 2.0" Thick (2.0" x 2.0" Square Mesh)

Panels Sizes: 3' x 10' or 4' x12'

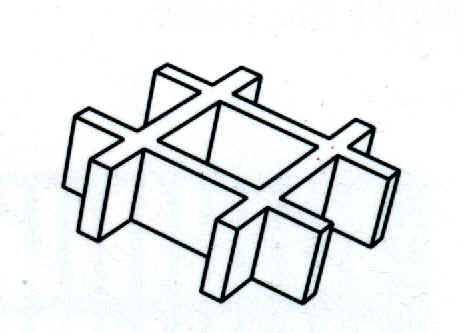

CC-GRATE: 1" Thick (1.5 x 1.5" Square Mesh)

Provide one inch thick grating with fabrication advantages of the square mesh pattern. Good for flooring, machine housings, fabrications and similar applications requiring strength in both length and width direction.

Center-Center:	1.5" x1.5"	Open Area:	69%
Bar Height:	1.0"	Panel Area (Men./Grit):	130/150 lbs
Tie Bar Width:	0.25"	Wt/sf (Men/Grit):	2.7/4.2 lbs/sf
Bearing Bar Width:	0.25"	-

CONCENTRATED LOAD (12" STRIP)								UNIFORM LOAD (FULL PANEL)							POINT LOAD
Span	Max Load ( lb/sf)		Load (lb)					Max Load ( lb/sf)		Load (lb)					Load ( lb)
Inch	Normal	Firm	100	200	500	1000	2000	Normal	Firm	50	100	150	200	250	Normal	Firm
12	2640	1758	0.014	0.029	0.070	0.143	0.284	>3000	2520	*	*	0.013	0.018	0.023	2789	1863
18	871	573	0.047	0.092	0.219	0.429	*	927	615	0.022	0.043	0.064	0.084	0.104	1740	1157
24	414	279	0.093	0.177	0.454	*	*	328	221	0.058	0.111	0.168	0.226	0.284	951	632
36	125	83	0.300	*	*	*	*	77	52	0.242	*	*	*	*	371	233
48	92	60	*	*	*	*	*	40	30	*	*	*	*	*	246	166

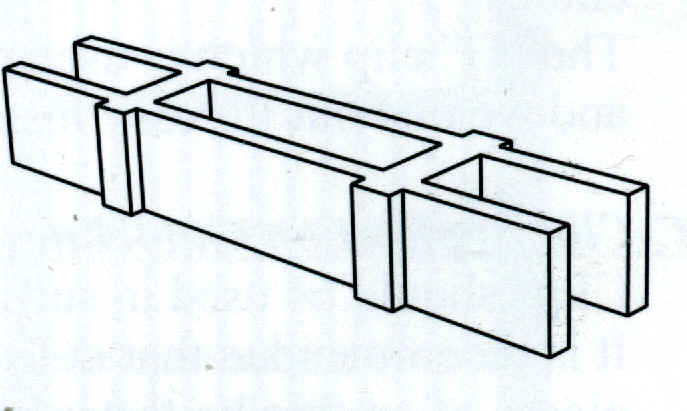

CC-GRATE: 1.0" Thick (1" x 4" Heavy Duty- Rectangular Mesh)

A Heavy Duty one inch thick grating. Bearing bars are thicker than other 1x4 pattern grating for greater load capacity and improved resistance to mechanical damage. The bearing bars run in the width dimension.

Center-Center:	1.0" x 4.0"	Open Area:	65%
Bar Height:	1.0"	Panel Area ( Men./Grit):	175/200 lbs
Tie Bar Width:	0.25"	Wt/sf (Men/Grit):	3.6/4.2 lbs/sf
Bearing Bar Width:	0.50"

CONCENTRATED LOAD (12" STRIP)								UNIFORM LOAD (FULL PANEL)							POINT LOAD
Span	Max Load ( lb/sf)		Load (lb)					Max Load ( lb/sf)		Load (lb)					Load ( lb)
Inch	Normal	Firm	100	200	500	1000	2000	Normal	Firm	50	100	150	200	250	Normal	Firm
12	>3000	>3000	*	0.015	0.036	0.072	0.143	>3000	>3000	*	*	*	*	0.012	>3000	>3000
18	1700	1132	0.022	0.044	0.110	0.221	0.441	1802	1201	0.010	0.021	0.031	0.041	0.052	>3000	2288
24	751	500	0.050	0.100	0.250	0.499	*	601	401	0.031	0.063	0.094	0.125	0.156	2245	1496
36	211	140	0.178	0.356	*	*	*	112	75	0.167	0.334	0.500	*	*	849	535
48	132	88	0.281	*	*	*	*	53	36	0.351	*	*	*	*	497	320

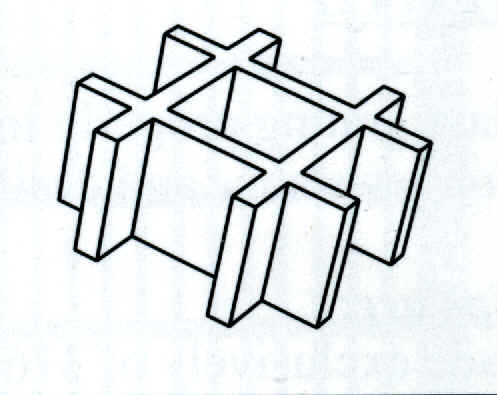

CC-GRATE: 1.5" Thick (1.5 x 1.5" Square Mesh)

The industry standard in both thickness and pattern. The square mesh pattern provides strength in both direction for more efficient utilization and easier fabrication. Panel sizes can be up to 5' x 13'.

Center-Center:	1.5" x1.5"	Open Area:	63%
Bar Height:	1.5"	Panel Area ( Men./Grit):	185/215 lbs
Tie Bar Width:	0.3125"	Wt/sf (Men/Grit):	3.9/4.5 lbs/sf
Bearing Bar Width:	0.3125"

CONCENTRATED LOAD (12" STRIP)								UNIFORM LOAD (FULL PANEL)							POINT LOAD
Span	Max Load ( lb/sf)		Load (lb)					Max Load ( lb/sf)		Load (lb)					Load ( lb)
Inch	Normal	Firm	100	200	500	1000	2000	Normal	Firm	50	100	150	200	250	Normal	Firm
12	>3000	>3000		0.015	0.029	0.053	0.114	>3000	>3000	*	*	*	*	0.011	>3000	>3000
18	>3000	2100	0.013	0.028	0.059	0.119	0.238	>3000	2460	*	0.013	0.019	0.024	0.029	>3000	2842
24	1493	984	0.033	0.059	0.133	0.254	0.499	1223	807	0.021	0.037	0.052	0.068	0.083	2985	1990
36	468	314	0.080	0.157	0.401	*	*	244	162	0.074	0.149	0.225	0.329	0.381	1232	778
48	199	131	0.192	0.377	*	*	*	130	61	0.235	0.471	*	*	*	749	474

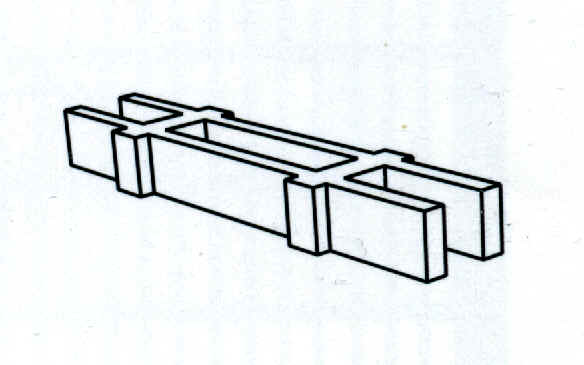

CC-GRATE: 1.5" Thick (1.5" x 6" Rectangular Mesh)

A unique pattern of standard 1.5" thickness is this rectangular mesh with bearing bars running lengthwise for efficient fabrication and utilization. As a result of thicker bearing bars, the stiffness of the penal is also improved.

Center-Center:	1.5" x 6.0"	Open Area:	72%
Bar Height:	1.5"	Panel Area ( Men./Grit):	140/165 lbs
Tie Bar Width:	0.3125"	Wt/sf (Men/Grit):	4.0/4.5 lbs/sf
Bearing Bar Width:	0.5625"

CONCENTRATED LOAD (12" STRIP)								UNIFORM LOAD (FULL PANEL)							POINT LOAD
Span	Max Load ( lb/sf)		Load (lb)					Max Load ( lb/sf)		Load (lb)					Load ( lb)
Inch	Normal	Firm	100	200	500	1000	2000	Normal	Firm	50	100	150	200	250	Normal	Firm
12	>3000	>3000	*	*	0.019	0.039	0.078	>3000	>3000	*	*	*	*	*	>3000	>3000
18	>3000	2513	0.010	0.020	0.050	0.099	0.199	>3000	2460	*	*	0.014	0.019	0.023	>3000	>3000
24	1705	1136	0.022	0.044	0.110	0.220	0.441	1359	807	0.014	0.028	0.041	0.055	0.069	>3000	2224
36	518	345	0.072	0.072	0.362	*	*	276	162	0.067	0.136	0.204	0.272	0.339	1360	827
48	266	177	0.141	0.141	*	*	*	107	71	0.176	0.353	*	*	*	781	510

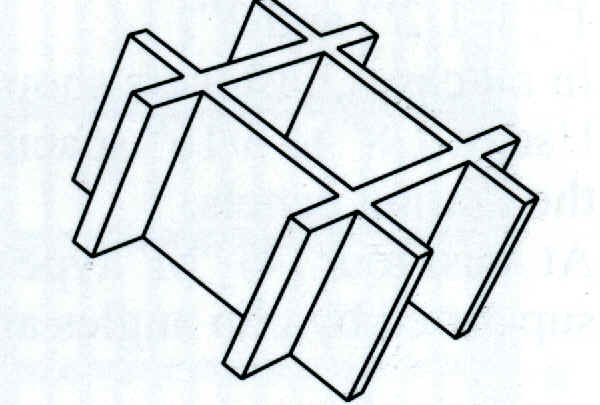

CC-GRATE: 2.0" Thick (2.0" x 2.0" Square Mesh)

Specially designed for maximum stiffened and strength without excessive weight. The square mesh pattern also means efficient panel utilization and ability to handle load in both direction. Ideal for longer spans or heavier loads.

Center-Center:	2.0" x 2.0"	Open Area:	71%
Bar Height:	2.0"	Panel Area ( Men./Grit):	190/215 lbs
Tie Bar Width:	0.3125"	Wt/sf (Men/Grit):	4.0/4.5 lbs/sf
Bearing Bar Width:	0.3125"

CONCENTRATED LOAD (12" STRIP)								UNIFORM LOAD (FULL PANEL)							POINT LOAD
Span	Max Load ( lb/sf)		Load (lb)					Max Load ( lb/sf)		Load (lb)					Load ( lb)
Inch	Normal	Firm	100	200	500	1000	2000	Normal	Firm	50	100	150	200	250	Normal	Firm
12	>3000	>3000	*	*	0.017	0.031	0.056	>3000	>3000	*	*	*	*	*	>3000	>3000
18	>3000	>3000	*	0.014	0.036	0.071	0.145	>3000	>3000	*	*	0.010	0.013	0.017	>3000	>3000
24	2660	1791	0.014	0.026	0.066	0.136	0.280	2337	1556	*	0.016	0.025	0.033	0.041	>3000	2796
36	875	586	0.042	0.085	0.213	0.429	*	469	312	0.040	0.079	0.119	0.160	0.200	1843	1225
48	400	267	0.092	0.187	0.469	*	*	160	106	0.117	0.234	0.352	0.470	*	988	660
